Key Features
Low Fuel Consumptions
Low Maintenance Cost
Dry Self prime & reprime
Available Electric Option
Liquids & Solids Handling
Replaceable Wear Parts
Custom Build Available
IP 65 Control Panel
Technical Data
| Specification | Details |
|---|---|

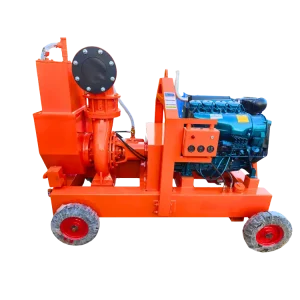

| Pump Model | MG – 200 |
| Pump Size | 8″ × 8″ (200 × 200 mm) |
| Maximum Flow Rate | Up to 550 m³/h |
| Maximum Head | Up to 40 m |
| Maximum Suction Lift | Up to 9 m |
| Vacuum Capacity | 70 CFM |
| Solids Handling Capacity | Up to 2″–3″ |
| Maximum Operating Temperature | 80°C |
| Engine | Kirloskar HA 494, 4-Cylinder, Air-Cooled Diesel Engine |
| Engine Power | 52 HP |
| Operating Speed | 1800 RPM |
| Fuel Tank Capacity | 155 L (Up to 24 Hours Continuous Operation) |
| Mounting Options | Skid Mounted, Silent Canopy, Towable Trolley, or Portable 2/4-Wheel Chassis |
| Weight | 1250kg |
| Dimensions (L × W × H) | 230 × 125 × 165 mm |
Materials of Construction
| Component | Material |
|---|---|
| Volute Casing | High-Grade Cast Iron / SS 304 |
| Pump Shaft | Stainless Steel (SS 304) |
| Impeller | Stainless Steel (SS 304) / Bronze |
| Stuffing Box | Stainless Steel (SS 304) |
| Priming Tank | Mild Steel |
Special Features
24-hour continuous-duty operation
Anti-corrosive epoxy zinc phosphate base coating
Scratch-resistant ceramic top-coat finish
18-month warranty against manufacturing defects
24/7 after-sales support
Related Accessories
- 8 inch 8 mtr Suction Hose
- 8 inch x 100 mtr Discharge Layflat Hose
- 8 inch Male / Female Hose Couplings
- 8 inch Strainers
- 8 inch Hose Clamps
- 8 inch Hose Clips
- 8 inch Male / Female Flange Fittings
Application
- Construction Site Dewatering
- Excavation & Foundation Dewatering
- Mining & Quarry Operations
- Oil & Gas Projects
- Industrial Process Water Transfer
- Municipal Water & Wastewater Management
- Flood Control & Emergency Drainage
- Sewage & Stormwater Bypass Pumping
- Agriculture & Irrigation
- Marine & Offshore Dewatering
- Tunnel & Underground Works
- Chemical Plant Water Transfer
- Infrastructure & Road Construction
- Pipeline Testing & Dewatering
